Angle Seat Piston Valves

Angle Seat Piston Valves

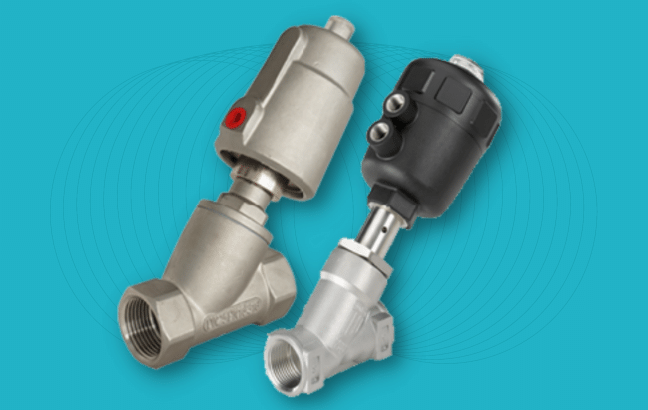

An angle seat piston valve is a pneumatically-controlled valve with a piston actuator providing linear actuation to lift a seal off its seat. The seat is set at an angle to provide the maximum possible flow when unseated. Angle seat piston valves are particularly suited to applications where high temperatures and large flowrates are required, such as steam or water. When used in reverse some models of angle seat piston valve will eliminate water hammer when operated.

Youtube Video Explorartion Section

Fields of Application:

Pneumatic valves are operated by a pilot medium under pressure, usually compressed air but also oil or water.


Technical specifications

  • Construction Angle seat shutting-off and regulating valve
  • Very good chemical and corrosion resistance
  • No influence on drinking water quality
  • Biologically inert; no support of microbial growth
  • High mechanical tensile strength
  • Secure solvent cementing using Tangit
  • Use of tin stabilizers for fittings and valves
Technical specifications
Construction Angle seat shutting-off and regulating valve
Size range DN 10 ÷ 50
Nominal pressure DN 10÷25: PN 16 with water at 20 °C

DN 32÷50: PN 10 with water at 20 °C

Temperature range 0 °C ÷ 60 °C
Coupling standards Solvent welding: EN ISO 1452, EN ISO 15493, BS 4346-1, DIN 8063, NF T54-028, ASTM D 2467, JIS K 6743. Can be coupled to pipes according to EN ISO 1452, EN ISO 15493, DIN 8062, NF T54-016, ASTM D 1785, JIS K 6741.

Thread: ISO 228-1, DIN 2999, ASTM D 2467, JIS B0203.

Flanging system: ISO 7005-1, EN ISO 1452, EN ISO 15493, EN 558-1 (DN 10÷50) , DIN 2501, ANSI B.16.5 cl.150, JIS B 2220.

Reference standards Construction criteria:EN ISO 1452, EN ISO 15493

Test methods and requirements: ISO 9393

Installation criteria: DVS 2204, DVS 2221, UNI 11242

Valve material PVC-U
Seal material EPDM+PE (EPDM+PTFE or FKM+PTFE on request)
Control options Manual control

Industries We Serve

  • Versatility of use
  • Very good chemical and corrosion resistance
  • No influence on drinking water quality
  • Biologically inert; no support of microbial growth
  • High mechanical tensile strength
  • Secure solvent cementing using Tangit
  • Use of tin stabilizers for fittings and valves

Are you confused about how to choose leakage-free, non-corrosive pipelines and tanks for your industry?

We know how difficult it is to choose the right material and type of tanks and pipelines that will last for years without you having to face any trouble. Delta Flow is the number one supplier of leakage-free, non-corrosive, non-rusting thermoplastic piping Design and detailing and thermoplastic tanks as per DVS standards. Our pipes and tanks can withstand heavy stress and temperature. So, contact us for the selection of material, jointing, and testing as per application 3D modeling with design for piping systems.
