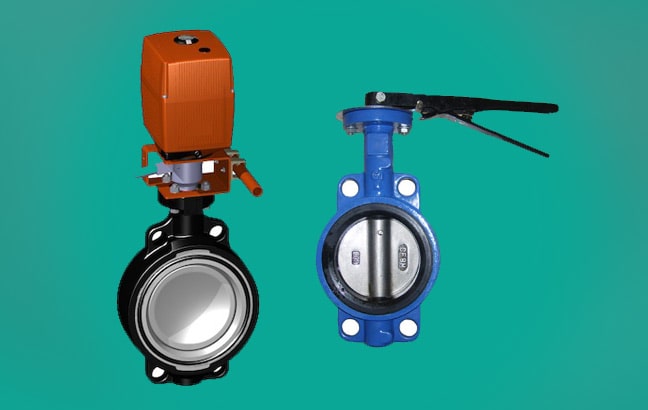

Butterfly valves

Thermoplastic Industrial Butterfly Valves Supplier

Delta Flow Solutions is a leading butterfly valve supplier of high performance butterfly valves across the world. It has over 1000 clients spread all over. Delta Flow focuses primarily on butterfly valves supplier and butterfly valves dealers and with that slowly and steadily expansion strategy it has as of now presence in more than 100 countries.

Thermoplastic Industrial Butterfly Valves Specification

Technical specifications
Construction Bi-directional centric butterfly valve
Size range DN 40 ÷ 200
Nominal pressure

Wafer version

DN 40÷50: PN 16 with water at 20 °C

DN 65÷200: PN 10 with water at 20 °C

Temperature range 0 °C ÷ 60 °C
Reference standards Flanging system:EN ISO 1452, EN ISO 15493, DIN 2501, ISO 7005-1, EN 1092-1, ANSI B16.5 Cl.150>
Riferimenti Reference standard Construction criteria: EN ISO 16136, EN ISO 1452, EN ISO 15493

Test methods and requirements: ISO 9393

Actuator couplings: ISO 5211

Valve material

Body: PVC-U

Disk: PVC-U

Stem: Zinc plated carbon steel (C45). On request STAINLESS steel AISI 316

Seal material Liner: EPDM, FKM. On request NBR
Control options Hand lever operated; Gearbox, pneumatic actuator, electric actuato

Industries We Serve

Butterfly Valves Technical Details:

  • Versatility of use
  • Very good chemical and corrosion resistance
  • No influence on drinking water quality
  • Biologically inert; no support of microbial growth
  • High mechanical tensile strength
  • Secure solvent cementing using Tangit
  • Use of tin stabilizers for fittings and valves

Delta flow is a pune based company renowned name in the field of industrial piping system for more than two decades. We are the authorized supplier of butterfly valves dealers and butterfly valves supplier in India and abroad. We cater services of supply in thermoplastic PVC valves 3 inch butterfly valve, pneumatic butterfly valve, butterfly valve actuator, high performance butterfly valves etc.

Thermoplastic butterfly valve is one of the types of valve which is used to control the flow of gas or liquid through a circular pipe or tube. High performance butterfly valves manufacturer can maintain high pressure, high volume etc. butterfly valves pune supplies world class butterfly valves and pipe fittings to across the clients as per there needs and requirements.

  • It is less costly as compared to metal butterfly valves.
  • Butterfly Valves are more Corrosive resistant.
  • We have made supply of high quality valves easy through mechanized chain of butterfly valves suppliers and thermoplastic butterfly valves dealers.
  • They can be used in a multi tasking applications.
  • High performance butterfly valves can maintain high pressure, high volume etc
  • ELECTRIC THERMOPLASTIC BUTTERFLY VALVE TYPE 140 valves is available of material ABS, PVC-U, PVC-C, PP, PVDF. Its 140 type electric butterfly valve powered by 100-230v and 24v second one is of Type 145 available in all material. Its 145 type electric butterfly valve is powered by 100-230v and 24v. Type 146 high performance butterfly valves is operated without manual override. Its made up of ABS, PVC-U, PVC-C material. The maximum voltage operated butterfly valve available is 100-230v and 24v.
  • Pnuematic Butterfly Valve of type 240 is without manual override. Control mode is DA(Double Acting), FO(Fail safe to open) and FC( Fail safe to close). The pressure bearing is 4,5,6,8 and 10 second type is Pneumatic butterfly valve of type 242 is of material PVC-U. Control mode is DA,FO and FC. The pressure bearing is 10 PN.third one is high performance butterfly valves of type 243 is of material PVC-U, ABS, PP, PVC-C, PVDF. Control mode is DA,FO and FC. The pressure bearing is 8 & 10. PN. Butterfly valves pune cater services of supply in thermoplastic PVC valves 3 inch butterfly valve, pneumatic butterfly valve, butterfly valve actuator, high performance butterfly valves etc.
  • Wafer Butterfly Valve is used to maintain a seal against bi-directional pressure to prevent any backflow pressure accomplishes through tight gasket, O-seal rings. Wafer butterfly valves are used in food processing and chemicals industry.
  • FLANGED BUTTERFLY VALVE, Delta Flow supplies wide range of world class Flanged butterfly valves to its customers around the world. Butterfly valve is also called Double Flanged valves since it is sandwitched between two flanges thus it is always manufactured as Wafer butterfly valve, flanged valve.

Mahindra and Mahindra trust on thermoplastic butterfly valves since decades.

Mahindra & Mahindra Ltd. is a group of companies bounded together for common purpose from IT to Automobile Industry. Delta Flow has been providing high performance butterfly valves, flanged butterfly valve, wafer butterfly valve, 3 inch butterfly valve, pneumatic butterfly valve, butterfly valve actuator for its parts auto components and also for its other core manufacturing sectors for decades.

Butterfly valves demand has been increasing for Ultra Tech Cement for there ongoing projects.

Ultra Tech Cement is the global leader and a pioneer in cement production. Delta Flow is the trusted supplier of Ultra Tech of high performance butterfly valves, and other pipe fittings through its well organized chain and team of butterfly valves dealers and Butterfly valves supplier and services.

Are you confused about how to choose leakage-free, non-corrosive pipelines and tanks for your industry?

We know how difficult it is to choose the right material and type of tanks and pipelines that will last for years without you having to face any trouble. Delta Flow is the number one supplier of leakage-free, non-corrosive, non-rusting thermoplastic piping Design and detailing and thermoplastic tanks as per DVS standards. Our pipes and tanks can withstand heavy stress and temperature. So, contact us for the selection of material, jointing, and testing as per application 3D modeling with design for piping systems.
