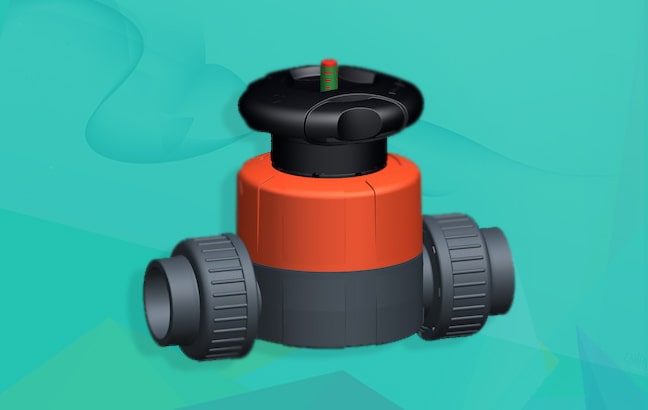

Industrial PVC Diaphragm valve can be either manual or automated. It consists of a valve body with two or more than two ports. It bears a saddle upon which the diaphragm closes or opens the valve. Diaphragm valves supplier can be controlled by pneumatic, hydraulic or manual actuator. Different types of world class high quality diaphragm valves like diaphragm check valve, pneumatic diaphragm valve, diaphragm solenoid valve, hydraulic flow control valve is supplied by Delta Flow.
|Construction||Diaphragm valve with maximized flow rate and DIALOCK® lockable handwheel|
|Size range||DN 15 ÷ 65|
|Nominal pressure||PN 10 with water at 20° C|
|Temperature range||0 °C ÷ 60 °C|
|Coupling standards||Solvent welding: EN ISO 1452, EN ISO 15493, BS 4346-1, DIN 8063, NF T54-028, ASTM D 2467. Can be coupled to pipes according to EN ISO 1452, EN ISO 15493, DIN 8062, NF T54-016, ASTM D 1785.
Thread:ISO 228-1, DIN 2999, ASTM D 2464.
Flanging system: ISO 7005-1, EN ISO 1452, EN ISO 15493, EN 558-1, DIN 2501, ANSI B.16.5 cl. 150, JIS B2220.
|Reference standards||Criteri Costruttivi: EN ISO 16138, EN ISO 1452, EN ISO 15493
Test methods and requirements: ISO 9393
Installation criteria:DVS 2204, DVS 2221, UNI 11242
Bonnet and handwheel: PP-GR
Position indicator cap:PVC
|Seal material||EPDM, FKM, PTFE|
|Control Options||Manual control; pneumatic actuator|
Thermoplastic Piping system is one of the divisions of diaphragm valves manufacturer and high performance pipe fitting systems valves like diaphragm check valve, pneumatic diaphragm valve, diaphragm solenoid valve, hydraulic flow control valve piping materials etc.It has representatives in over 100 countries and more than 30 manufacturing units spread all over the world in Asia, Africa and Middle East etc and supplies diaphragm valves through Delta Flow - A Pune based company operating from more than 20 years and a renowned name in the field of Industrial Piping System is the authorized diaphragm valves supplier.
(A) Manual Diaphragm Valves of type 514 is available with ANSI,ASTM,BS,JIS,METRIC,OIL FREE & SILICON FREE standard .Diaphragm of ABS,PE,PP,PVC-C,PVC-U,PVDF,PVDF-HP material is available with 10 and 16 PN second is Manual Diaphragm Valves of type 515 is available with metric and silicon free standard .Diaphragm of ABS,PE,PP,PVC-C,PVC-U,PVDF,PVDF-HP material is supplied through diaphragm valves pune third one is Manual Diaphragm Valves 517 typeis available with ANSI, ASTM, BS, JIS, METRIC, OIL FREE & SILICON FREE standard. Diaphragm of PP, PVC-C, PVC-U, PVDF, PVDF-HP material is available
(B) Pneumatic Diaphragm Valves of type 604/605 Diaphragm valve available with ANSI, JIS, ASTM and Metric standard second type DIASTAR Six Diaphragm valve available with silicon free standard next is DIASTAR Ten Diaphragm valve available with standard. Diaphragm of ABS, PP, PP-R, PVC-U, PVC-C, PP-R, PVDF-HP material DIASTAR Ten plus pneumatic Diaphragm valve available with standard. Diaphragm of PVDF material DIASTAR sixteen Pneumatic Diaphragm valve available with Metric standard only.
(C) Diaphragm solenoid valve is a valve operated by electromechanically controlled by electric current through a solenoid. Diaphragm solenoid valve is generally used in HVAC and in hydraulic systems. Automatic irrigation sprinkler systems also use diaphragm solenoid valves with an automatic controller.
It is also called non-return valve or flow in one direction. Diaphragm check valve is uni-directional that prevents backflow of fluid, gases etc. Diaphragm check valves uses rubber material diaphragm to prevent backflow. We provide a wide range of different sizes and material of Diaphragm check valve through our effective and professional sales team. World class quality Thermoplastic Diaphragm valve supplier is Delta Flow Solutions Pvt. Ltd.. Hydraulic control valve is a quasi hydrostatic drive or transmission system that uses hydraulic fluid while Pneumatic diaphragm valves are controlled by air pressure system.
Gharda chemicals has been Using Diaphragm valve in research activities with four manufacturing unit in the field of dye drugs, pesticides and veterinary drugs. Diaphragm valves pune have been very instrumental in providing high quality assured valves, diaphragm check valve, pneumatic diaphragm valve, diaphragm solenoid valve, hydraulic flow control valve since decades to its ongoing projects whenever and wherever required
It is India’s leading manufacturer of PVC-U Pipes and fittings. It is the second largest manufacturer of PVC resin. Delta Flow has been providing superior quality of Diaphragm check valves, Pneumatic diaphragm valve, diaphragm solenoid valve, hydraulic flow control valve etc in its manufacturing unit across India through our competent team of sales and direct outlets.
We know how difficult it is to choose the right material and type of tanks and pipelines that will last for years without you having to face any trouble. Delta Flow is the number one supplier of leakage-free, non-corrosive, non-rusting thermoplastic piping Design and detailing and thermoplastic tanks as per DVS standards. Our pipes and tanks can withstand heavy stress and temperature. So, contact us for the selection of material, jointing, and testing as per application 3D modeling with design for piping systems.
