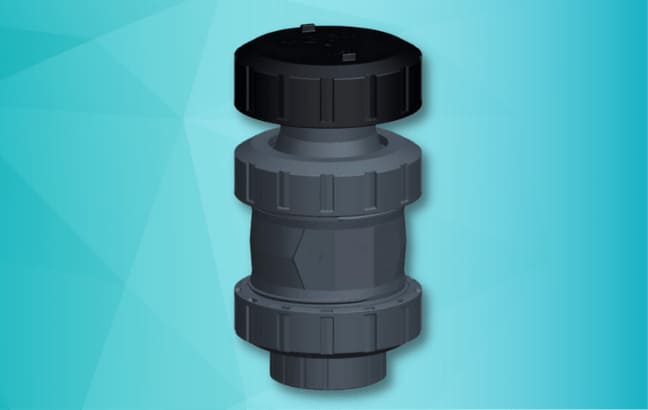

Industrial Thermoplastic Venting Valves

Industrial Thermoplastic Venting Valves Supplier & Manufacturer

Industrial thermoplastic venting valves are used to isolate the section of pipe line from environmental atmosphere and enclosed it with a special blind flange. This thermoplastic venting valve is a very special type of valve in which the whole apparatus will be isolated from external agent or surroundings and will be enclosed with a flange. Air vent valve, automatic air vent valve, vented ball valve, plumbing vent valve, automatic vent valve, tank vent valve are some of the different types of industrialventing valves available with Delta Flow

Industrial Thermoplastic Venting Valves Overview

Product Specification

Technical Details:

  • Minimum Order Quantity: 5 Piece
  • Place Of Origin: Switzerland
  • Pressure: Low Pressure
  • Size: 3/8" to 8"
  • Material: UPVC/ CPVC/ PPH /PVDF
  • Type: Ball/ wafer
  • Brand: Gerog Fischer, KSB
  • Body material: PVC-C, PVC-U, PP-H, PVDF
  • O ring: EPDM, FPM
  • DN10-DN100
  • Up to PN16
  • Type 595 with spring
  • Float PP-H / PVDF
Technical specifications
Construction Air release valve
Size range DN 15 ÷ 50
Nominal pressure PN 16 with water at 20 °C
Temperature range 0 °C ÷ 60 °C
Coupling standards Reference standards Solvent welding: EN ISO 1452, EN ISO 15493, BS4346-1, DIN 8063, NF T54-028. Can be coupled to pipes according to EN ISO 1452, EN ISO 15493, DIN 8062, NF T54-016.

Thread:ISO 228-1, DIN 2999.

Construction criteria: EN ISO 16137 EN ISO 1452, EN ISO 15493

Test methods and requirements: ISO 9393

Installation criteria: DVS 2204, DVS 2221, UNI 11242

Valve material PVC-U
Seal material EPDM

Delta Flow Piping system is venting valve manufacturer with global presence. With it’s intelligent team of competent employees, trendsetting products, innovative technology venting valves supplier & thermoplastic Venting Valves venting valves dealers it has set a global standard in our product s which binds our clients across the globe.

  • This Venting valve is applicable for a wide range of environmental and application.
  • Wide range of air vent valves available with venting valves supplier and thermoplastic venting valves dealers - Delta Flow
  • It is used in many process media types.
  • Easily replaceable in process piping.
  • Thermoplastic venting valves are Widely used in hydro testing.
  • Air vent valves are cheaper the other valves

Delta flow is a authorized venting valves supplier which provides a world class service in the field of industrial piping system. A Pune based company it has cater to the service in this field for two decades and has excellent record of timely delivering of quality product anywhere client demands. It supplies various types of thermoplastic venting valves like vented ball valve, plumbing vent valve, air vent valve, automatic vent valve, tank vent valve etc and piping materials of different types of material PVDF, PVC-U, PVC-C etc.

Venting valves removes air or gases from tanks, vessels, pipe lines etc. The body of venting valves is designed in such a way that it is also called as float controlled valve which closes the valve as the fluid level rises and opens as the flow level falls. Almost all venting valves be it vented ball valve, plumbing vent valve, automatic vent valve, tank vent valve are designed in the same fashion.

A. Venting and Deventing Valves Type 591

Different types of Venting valves is available with Delta Flow. End connection is spigot & socket in Type 591 valve and pressure available is 10 and 16 PN. second is Industrial Thermoplastic Venting Valves of type 595- Venting valves available with ABS, PE, PP, PVC-C, PVC-U, PVDF, PVDF-HP material is available with Delta Flow. End connection is spigot & socket in Type 595 valve and pressure available is 10 and 16 PN.

B. Air Vent Valve Type

When liquid is pumped through the system Air vent valves at startup, the initial air inside the piping is pushed into the air vent by the pressure of the flow. The float remains in the lower part of the air vent valve, allowing the valve to remain open and continuously discharge air. Air vent valve controls the flow of outside air in and out of the charcoal canister in car. Applications of this type of venting valves we will find in thermodynamic solution, radiators etc.

C. Vented Ball Valve Supplier

The effective way to relieve damage pressure is to vent the ball valve through a second and smaller hole in the ball. Vented ball valves are either vented internally or externally and also whether the vent faces upstream or downstream flow. Vented ball valves is available and supplied by Delta flow which is the venting valves supplier to all its customers around the world.

Industrial Thermoplastic Tank Vent Valve Supplier

In simple word our tank has to breathe.In order to breathe, our tank must have a venting valves somewhere that will relieve both in vacuum and pressure. Fluid expands in volume as it warms up and shrinks in volume as it cools down. we cannot put fuel into our tank, unless we get the air out and we cannot withdraw fuel from our tank unless we let air in, so in that case Tank vent valve becomes necessary. Tank vent valve is different from plumbing vent valve because it has a drain waste vent (DWV) removes waste sewage from building and aslo regulate air pressure.

Do not believe us – Our client speaks about our achievements by best services

AMW is a leading automobile industry. It manufactures vehicles, auto components and forged components in India. AMW implants Venting valves, air vent valve, automatic air vent valve, vented ball valve, automatic vent valve, and automatic air vent valve. Venting valves Pune have served to many clients and because of our quality products and efficient after deliverability services we are the best in Industrial piping industry.

Jindal Steel is one of the top steel companies in India having dominant presence in steel industries, power generation and mining. Requirement of air vent valve, automatic air vent valve, vented ball valve, plumbing vent valve, automatic vent valve, tank vent valve for its Chhattisgarh power project in 2010 and since its completion we are catering service to every its major projects.

Are you confused about how to choose leakage-free, non-corrosive pipelines and tanks for your industry?

We know how difficult it is to choose the right material and type of tanks and pipelines that will last for years without you having to face any trouble. Delta Flow is the number one supplier of leakage-free, non-corrosive, non-rusting thermoplastic piping Design and detailing and thermoplastic tanks as per DVS standards. Our pipes and tanks can withstand heavy stress and temperature. So, contact us for the selection of material, jointing, and testing as per application 3D modeling with design for piping systems.
